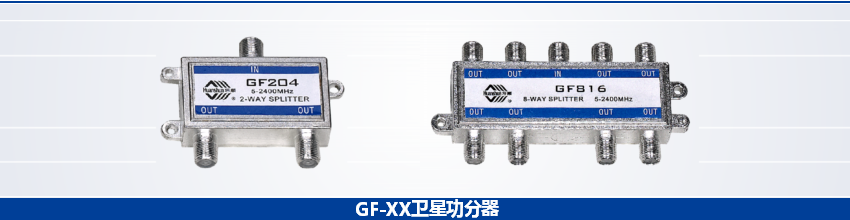

GF-XX satellite power splitter is a 2,4,6,8 distributor suitable for SATV / CATV signal, transmission frequency 950-2300 MHz, can also provide special products of 5-2450-and 2600 MHz. PCBA is designed for uHF circuit boards, precision alloy die-cast housing, metric and British F-head ports, all ports are electrified.
| Project | Frequency range （MHz) | GF-204 | GF-408 | GF-612 | GF-816 |
| Insertion loss（dB) | 5-40 | 4 | 8 | 11 | 12 |
| 40-470 | 4 | 8.2 | 11 | 12 | |
| 470-1000 | 4.5 | 8.5 | 12 | 13 | |
| 1000-1750 | 5.5 | 10 | 14.5 | 15 | |
| 1750-2050 | 6 | 10.2 | 15 | 16.5 | |
| 2050-2400 | 6.5 | 11.5 | 16.5 | 18 | |
| Separate each other（dB) | 5-40 | 14 | 22 | 24 | 24 |
| 40-470 | 22 | 22 | 22 | 25 | |
| 470-1000 | 22 | 22 | 22 | 25 | |
| 1000-1750 | 20 | 22 | 20 | 22 | |
| 1750-2050 | 22 | 22 | 20 | 22 | |
| 2050-2400 | 20 | 20 | 20 | 20 | |
| Reflection loss （dB) | 5-40 | 12 | 10 | 10 | 10 |
| 40-470 | 16 | 12 | 12 | 12 | |
| 470-1000 | 14 | 12 | 12 | 12 | |
| 1000-1750 | 12 | 12 | 12 | 12 | |
| 1750-2050 | 12 | 12 | 12 | 12 | |
| 2050-2400 | 10 | 10 | 10 | 10 |
