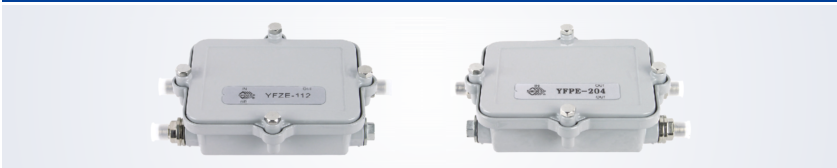

YFZE branch and YFPE distributor are specially designed for the access network of HFC network system. Aluminum die-cast shell, moisture-proof, radiation-proof, anti-interference ability, good heat dissipation performance, can directly work in the field environment; ultra-small design, light weight, easy to attach; strong overcurrent capacity, large current flow, high reflection loss, and good frequency characteristics.
● Overflow 10A, plug and pull type overflow bar conversion is convenient
● Metric system interface, compatible with all cable connectors
● Prevent radio frequency interference, good shielding
● Die-cast shell, rain, dust, heat dissipation performance
1）Field waterproof overflow branching device
| Name | Model | Specification (branch loss as nominal ± 1.5dB) / insertion loss (as to 550-750 MHz) (dB) | Opposite direction insulate | Separate each other（dB) | Reflection loss （dB) | Shield attenuation（dB) |
| One branch | YFZE-1 | 08/2.7,10/2.5,12/2.2,14/2.1,16/1.9,18/1.8,20/1.8 | In line with the current national standard | 5-65MHz≥22 65-550MHz≥30 550-750MHz≥22 750-1000MHz≥20 | 5-65MHz≥14 65-550MHz≥16 550-1000MHz≥14 | ≥100 |
| Two branches | YFZE-2 | 08/4.5,10/3.7,12/2.9,14/2.7,16/2.5,18/2.5,20/2.0 |
2）Field waterproof overcurrent distributor
| Name | Model | Distribution loss（dB) | Separate each other（dB) | Reflection loss （dB) | Shield attenuation（dB) | |||
| 5-65MHz | 65-550MHz | 550-750MHz | 750-1000MHz | |||||
| Two distributors | YFPE-204 | ≦4.5 | ≦4.2 | ≦4.9 | ≦5.5 | 5-65MHz≥22 65-550MHz≥25 550-750MHz≥22 750-1000MHz≥22 | 5-65MHz≥14 65-550MHz≥16 550-1000MHz≥14 | ≥100 |
| Three distributors | YFPE-306 | ≦7.5 | ≦6.8 | ≦7.2 | ≦7.9 | |||
| Four distributors | YFPE-408 | ≦8.5 | ≦8.5 | ≦9 | ≦9 | |||
