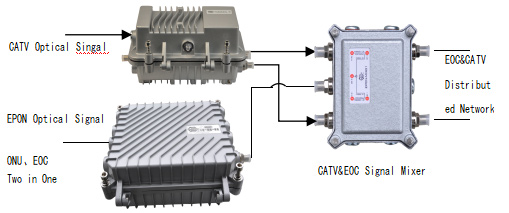

EPCN-MIX01/02 EOC&CATV mixer is formed of 2 or 4 high isolation duplexers and 1 high isolation 2/4 distributor. High isolation distributor is applied to distribute EOC signal into 2/4 routes, and then mix with 2/4 routes CATV signal respectively. MIX-01/02 high channel supports AC overcurrent 60V6A, one low pass supports optional overcurrent and provides feed power supply for EOC network concentrator. EPCN-SM05-CB is single route mixer, channel objects to pass electric. This series mixer applies for transform from CATV optical node (optical receiver or optical work station) to EPON+EOC+CATV network, which is the ideal mating accessories for EOC network.
No. | Items | Unit | EPCN-SM05-CB | EPCN-MIX01 | EPCN-MIX02 | ||
1 | Insertion Loss | EOC | dB | ≤1.2dB | ≤5.2dB(includes two distributor loss) | ≤9.2dB(includes four distributor loss) | |
CATV | ≤1.2dB(85-862/1000MHz) | ||||||
2 | Mutual Isolation | dB | ≥55dB(5-65&85-862/1000MHz) | ||||
3 | Return Loss | dB | ≥16dB(any port) | ||||
4 | Signal Hum Ratio | dB | ≥66dB | ||||
5 | Voltage Pass | V/A | / | 60(50Hz)/6 or 10 | |||
6 | Connector Type | Metric | F-type female socket | Field F-type female socket | |||
7 | Outline Size | mm | 75x55x17 | 135x135x70 | 200x160x70 | ||
| Product Name | Model | Functional Description |
| EOC&CATV Mixer | EPCN-SM05-CB | 5-65MHz/85-862(1000)MHz mix, channel objects to electric pass2 |
| EPCN-MIX-01 | 5-65MHz signal distributes to two routes, then mix with two routes 85-862(1000)MHz CATV signal respectively, CATV channel pass electric and supports optional EOC head end feed power supply | |
| EPCN-MIX-02 | 5-65MHz signal distributes to four routes, then mix with four routes 85-862(1000)MHz CATV signal respectively, CATV channel pass electric and supports optional EOC head end feed power supply |
