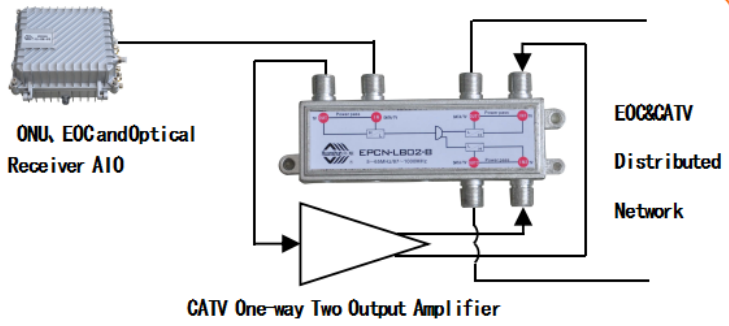

EOC network access point is formed of two or more duplexers. Using its 5-65MHz low frequency channel to interflow directly with EOC signal, 85-1000MHz CATV signal amplifies by accessing to electric signal. High frequency channel supports AC overcurrent, indoor type supports 60V4-6A and field type supports 60V10A. EPCN-LB01 is single route access point, EPCN-LB02 is two routes access point, YQJ is access point of field configuration and suffix B is 5-65MHz; Besides the access function, it also can be used as low pass filter, high pass filter and mixer, which is the ideal mating equipment for EOC network system.
| No. | Items | Unit | EPCN-LB01-B | EPCN-LB02-B | YQJ-B |
| 1 | EOC Port/CATV Port | no. | 2月2日 | 2月4日 | 2月2日 |
| 2 | DATA Band 5-65MHz Insertion Loss | dB | ≤1 | ||
| 3 | CATV Band 85-1000MHz Insertion Loss | dB | ≤1.5 | ||
| 4 | Mutual Isolation(DATA&CATV) | dB | >55 | ||
| 5 | Return Loss | dB | ≥16 | ||
| 6 | Voltage and Current Pass | V/A | 60/4 or 6 | Oct-60 | |
| 7 | Connector | / | Indoor Metric F-Type | Waterproof Metric F-Type | |
| Product Name | Models | Functional Description |
| Indoor configuration | EPCN-LB01-B | 2 EOC 5-65MHz connectors，2 CATV86-1000MHz connectors |
| EPCN-LB02-B | 4 EOC 5-65MHzconnectors，4 CATV86-1000MHzconnectors | |
| Field type configuration | YQJ-B | 2 EOC 5-65MHz connectors，2 CATV86-1000MHz connectors |
