Ningbo Newhuanshun Technology Co., LTD

EOC Network Concentrator返回

Type:	Cable television equipment
Function:	Signal transmission device
Certification:	ISO
Conditions:	latest
Color:	black
Model number:	HS15110D-CTA
Origin:	Ningbo, China
Trademark:	huanshun
Specifications:	19x11x1.75(WxDxH)
Customs Code:	8517622990

联系我们常见问题

描述

EOC is the technical term of transmitting Ethernet data in coaxial cable. Active modulation EOC processes transmitting through modulation-demodulation of data, which can unvarnished transmit amplifier and branch distributor. It is also applied to star network and tree-based network as well as some special network.

CLT201/2-H and CLT201-H/Y/Y2/Y4 EOC network concentrator applies Homeplug AV standard and adopts 11” 1U case structure and all cast aluminum can on the top of EOC network which provides 1 or 2 ways EOC connection maximum to 506 CNU204-H EOC network terminal box. EOC network concentrator supports remote network management and logs in by WEB/SNMP/TELNET to concentrate management of EOC network terminal box such as QoS set, encryption set, counting, status information search, software upgrading and etc.

█ Occupied 7.5~65MHz low-frequency band communication, strong ant jamming capacity, high bandwidth;

█ Built-in 1 or 2 ways CATV connectors, supporting 60V/6A feed or overcurrent;

█ Provides 2 10/100/1000M self-adaption Ethernet ports, uses to connect uplink ONU or Ethernet cascade;

█ 201 device supports MAC 350Mbps, 202 device supports 2 MAC 350Mbps;

█ Field device in aluminum box with many edges, effectively protecting water and cooling, then increases product reliability;

█ Indoor device in 11” 1U iron box, operating platform lays or hanging or with hangers supporting 19” standard rack mounting.

技术规格：

Items	CLT202-H	CLT201-H	CLT201-H/Y	CLT201-H/Y2	CLT201-H/Y4
Case Type	11”1U Iron Box		All Aluminum Cast Can
Power Supply/Consumption	100~240VAC/<10W		100~240VAC or 35~75VAC/<10W
External Size	280x170x44mm		227x217x110mm
Built-in Ports	1 Console port(RJ45, 115200Kbps), one 10/100/1000 Base-TX Ethernet port(RJ45)		1 Console port(RJ45, 115200Kbps), three 10/100/1000 Base-TX Ethernet port(RJ45)
External Interface	2 CATV Entrance and 2 OUT Cable Interface	1 CATV Entrance and 1 OUT Cable Interface		2 CATV Entrance and 2 OUT Cable Interface	4 CATV Entrance and 4 OUT Cable Interface
Over Current Ability	6A
Operating Temperature	-25℃~+55℃
Operating Humidity	10%~90% No Condensate Water
Cooling Method	Nature Cooling
Standard Follow	IEEE 802.3, IEEE 802.3x, IEEE 802.3u Auto MDI(X)
Performance	Physical Layer Speed: 2x500Mbps,MAC Layer Throughput: 2x350Mbps	Physical Layer Speed: 500Mbps, MAC Layer Throughput: 350Mbps
Transmitting Distance	2x1km	1km		0.9km	0.8km
Frequency Occupied	7.5MHz~65MHz
Maximum Output Power	2x15dBm	15dBm		11dBm	7dBm
Receiving Sensitivity	2x-65dBm	-65dBm		-61dBm	-57dBm
Output Impedance	75Ω
Modulation Mode	OFDM

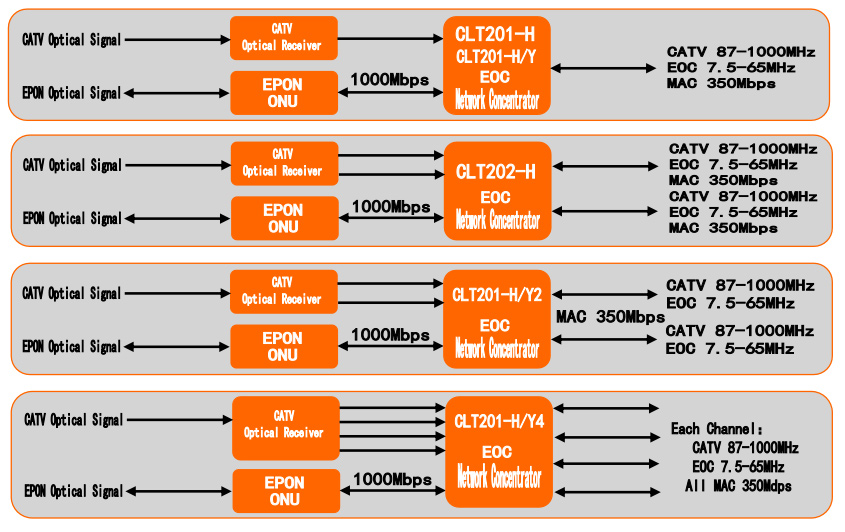

应用：

订货信息：

Product Name	Models	Functional Description
Indoor EOC network concentrator	CLT201-H	indoor 11″1U structure, 1 CATV connecting, 1 access MAC350Mbps; External 90~255V-12V 1.5A Power Adapter
Indoor EOC network concentrator	CLT202-H	indoor 11″1U structure, 2 CATV connecting, 2 access MAC350Mbps; External 90~255V-12V 1.5A Power Adapter
Outdoor EOC network concentrator	CLT201-H/Y	outdoor waterproof structure, inner power supply, AC90~255V power supply or AC35~75V feed; 1 CATV connecting, 1 access MAC350Mbps
	CLT202-H/Y2	outdoor waterproof structure, inner power supply, AC90~255V power supply or AC35~75V feed; 2 CATV connecting, 1 access MAC350Mbps
	CLT202-H/Y2	outdoor waterproof structure, inner power supply, AC90~255V power supply or AC35~75V feed; 4 CATV connecting, 1 access MAC350Mbps
