| Type: | Cable television equipment |
| Function: | Signal transmission device |
| Certification: | ISO |
| Conditions: | latest |
| Materials: | Aluminum die casting |
| Model number: | HS15110D-CTA |
| Origin: | Ningbo, China |
| Trademark: | huanshun |
| Specifications: | 19x11x1.75(WxDxH) |
| Customs Code: | 8517622990 |
1550nm Direct Modulation will cause serious Laser Chirp Effect, which will lead the Laser Bias Current to be modulated by CATV signal, and the Optical Frequency will shift and jitter. The Chirp will cause serious Distortion in 1550nm. This Distortion will become more serious as the Increase of Transmission Distance, Transmission Bandwidth and the Number of Channels. Our device adopts High Linear & Low Chirp DFB Laser, on the basis of 1310nm Multi-Function Optical Transmitter, increasing the Predistortion Compensation and Chirp Compensation that will greatly improves the Transmission Index of the system. It can be used for 1550nm System Analog and Digital Multiplexed Multi-Channel Signals Optical Transmission within the range of 20Km, and also can be used for Narrow Wave Multiplexing and IP/QAM of DWDM. In order to add the 1550 band Inter-Cut Function, this device can also be equipped with DWM Wave Interpolation Device and Optical Adjustable Attenuator, according to the Optical Signal Carrier Value and Main Wave Optical Power Size automatically finishing Inter-Cut Optical Power, and also supporting Network Management Control, to solve the problem of Inter-Cut Power and Level changes caused by the Main Wave Optical Power and Carrier Channel Changes after User Application. The Main Wave Input is 1535 ~ 1565nm, Inter-Cut Wave is this device’s Laser Wavelength.
█ We Choose ORTEL or AOI-1550nmITU Wavelength, with Semiconductor Refrigeration/Heating & Backlight Monitoring DFB Laser
█ Main Control Circuit with computer control, LCD Working Status Display, Automatic Alarm until Self-Protection
█ The Electric Signal Amplifier adopts PDI GaAs Low Noise, High Gain and Large Dynamic Module, Its Inter-Cut CNR Features better than China National Standard
█ High Efficiency Laser Predistortion Correction, Chirped Compensation Circuit, Effective Improvement of Nonlinear Distortion Index
█ Hot Pluggable Standby Power Supply Module, Anti Surge, Overvoltage and Overcurrent Protection, Anti Lightning Voltage≥6000V
█ Optical Transmission Carrier Bandwidth 47～862/1000MHz, Bandwidth Inside Flatness≤±0.75dB

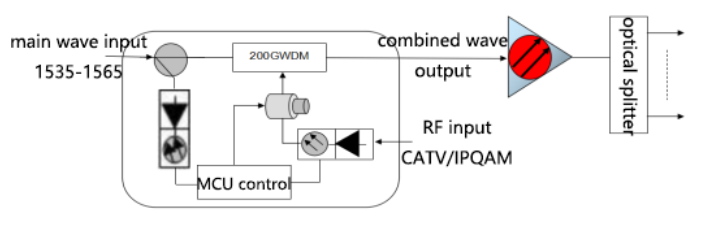

█ The built-in WDM component can access the main broadcast optical signal and complete the insertion function
█ Option Type II Condition Monitoring Transponder guaranteed to meet China National Standard and Compatible with SCTAE HMS WEB Standards
| Item | Performance Index | ||
| Main Wave | Main Wave Wavelength | nm | 1535-1565 Inter-Cut Wavelengths Should Be Avoided±2.5nm |
| Main Wave Power | dBm | -4～+9 | |
| Main Wave Modulation | % | 3.8(PAL60CH) | |
| Optical Characteristics | Laser Wavelength | nm | 1550±10(or ITU Wavelength or User Required) |
| Laser Linewidth | MHz | ≤1 FWHM(△λ) | |
| SMSR | dB | ≥45 SMSR | |
| Equivalent Noise Intensity | dB/Hz | ≤-160 RIN (20～1000MHz) | |
| Extinction Ratio | dB | ≥20 | |
| Output Power | dBm | ≥10-WDM loss & optical adjustable loss (about 1.5dB) | |
| Optical Return Loss | dB | ≥55 | |
| Optical Adapter | / | FC/APC or SC/APC | |
| RF Characteristics | Working Bandwidth | MHz | 47~862 or 1000 |
| Input Level | dBuV | 80±5, Transmission Channel≤60CH by 10lg60/n Append | |
| AGC Characteristics | dB | ±1 | |
| Flatness | dB | ≤±0.75 47-862/1000MHz | |
| Return Loss | dB | ＞16(47~550)MHz＞14[550～862/1000MHz | |
| Input Impedance | Ω | 75(RF/INPUT) | |
| RF Detection | dB | -20±1(Detection When Minimum Input Level) | |
| CNR | dB | ≥51(15Km Fiber Optic Link, 0dBm Receiving) | |
| CTB | dB | ≤-65(15Km Fiber Optic Link, 0dBm Receiving) | |
| CSO | dB | ≤-63(15Km Fiber Optic Link, 0dBm Receiving) | |
| General Characteristics | Network Management Port | / | RJ45(Support Web Browser&SNMP) |
| Power Supply/Consumption | V/W | 90～255/(Double Power Supply≤50) | |
| Working/Storage Temperature | ℃ | -20～55/-30～75 | |
| Working Relative Temperature | % | 5～95 | |
| Size | " | 19×10×1.75（W×D×H） | |
Special Note:
Although there are many advantages in optical interpolation, the main wave and the interpolated carrier channel change due to the change of demand, the power of the main wave power is switched with the looped network or the multi-line optical path, and the main wave power changes with the power distribution of the front-end equipment room. The latter stage optical amplification is not linear and causes the output level to change, which will cause the output level error of the main wave and the interpolated signal, the level difference increases, and the transmission index decreases.
The application of fully automatic optical interpolation can simplify this series of complex problems, through function settings or network management remote control, to achieve the desired insertion effect.
Product Name | Model | Functional Description |
auto WDM direct modulation optical transmitter | HS15110D-CTA | RF80±5dBuv input，ITU 1550nm,≥10dBm- insert &optical adjustable loss(about 1.5dB) output；1U standard cabinet，dual module hot plug power supply，AC90～255V or DC-48V power supply，RJ45 standard network management system(support SNMP, WEB) |
