| Type: | Cable television equipment |
| Function: | Signal Monitoring Equipment |
| Certification: | ISO |
| Conditions: | latest |
| Materials: | ABS |
| Color: | off-white |
| Model number: | HSOS21176GNW |
| Origin: | Ningbo, China |
| Trademark: | huanshun |
| Specifications: | 181(L)x118(W)x33(H)mm |
| Customs Code: | 8517622990 |

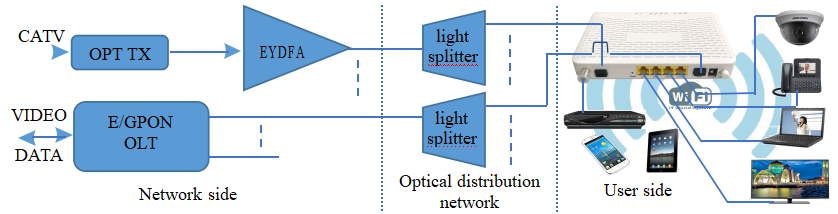

The FTTH terminal is composed of an optical network unit (ONU) and a CATV optical receiver. From the evolution of broadband access technology, it can be seen that fiber optic home (FTTH) is the ultimate development goal of broadband access, and this machine is the terminal product to meet this goal. This machine USES RRALTEK with WIFI G/EPON compatible ONU high performance chip and low power optical reception technology, can meet the needs of home fiber to home. The optical network unit complies with the international standard g.988 and the technical requirements of PON equipment of China's telecom industry, and has good interoperability and operability, which can realize interconnection and interworking with OLT equipment of the mainstream manufacturers in the industry. The machine has 1 upper port compatible with G/EPON, 1GE and 3 FE Ethernet ports, w-type with built-in 2*2 2.4g (300Mbps), CATV optical receiver with photo-controlled AGC function, -5 ~ -15dbm /RF constant output 76dBuv, n-type support WEB and SNMP, network management monitoring light receiving power, RF output level and RF output turned on or off. The machine is also provided with optical network unit, WIFI and CATV working status indication on the front side. It is easy to use, simple and reliable.
HSOS21176G is a 1GE+3FE+CATV optical receiving all-in-one, HSOS21176GN is a 1GE+3FE+ network tube CATV optical receiving all-in-one, HSOS21176GNW is a 1GE+3FE+2*2 2.4g (300Mbps, built-in antenna) network tube CATV optical receiving all-in-one
█ GPON ONU, WLAN AP and other family gateway devices with routing functions are integrated. Can provide users with a variety of rich, diverse, personalized, convenient, comfortable, safe and efficient services.
█ Provide a 1-way optical interface in accordance with itu-tg.984.x GPON standard for fiber optic high-speed access, which can provide sufficient bandwidth support for various emerging network services (such as online games, HDTV, VOD, etc.).
█ The 1-way 10/100/1000m adaptive Ethernet interface and 3-way 10/100m adaptive Ethernet interface are provided to support simultaneous use of multiple users.
█ IEEE802.3ah and 802.11b/g/n WLAN wireless interface is provided to make it easier for users to get rid of the shackle of cables.
█ Supports coverage distance of up to 20KM, supports symmetric (up/down) data transmission rate of up to 2.5gbps, supports simultaneous use of the network by multiple users via wired or wireless means.
█ Support 64-bit, 128-bit WEP, wpa-psk, wpa2-psk and other wireless encryption, support AES, TKIP encryption; Make your network more secure
█ Support for Bridge or Router mode or hybrid work mode; In the routing mode, it can support static configuration of IP address, DHCP, PPPoE and other working methods. Networking is flexible and can be used in a variety of different occasions.
█ Support NAT function, can achieve multiple users share a public network IP access to the Internet.
█ Support virtual server function, the realization of the external network for the home host access.
█ Support DHCP server function, support UPnP function enable/disable, convenient for users to configure the network.
█ Provide Web configuration, support two levels of user password, provide different permissions for different users, simple and convenient operation
█ Complete routing capabilities, support configuration of static and dynamic routing protocols.
█ Support port binding function to meet the needs of different networking.
█ Support powerful and perfect QoS functions to meet the needs of different businesses.
█ Support IGMP SNOOPING and IGMP PROXY protocols, with perfect multicast function, to meet the needs of IPTV and other video services.
█ Complete firewall capabilities and support for MAC or IP address based access control (including LAN and WLAN), making the user's network more secure.
█ G/EPON is compatible with each other. When G/EPON signals are recognized, they are automatically converted to the corresponding working mechanism.
█ Network tube type light receiving, support WEB and SNMP, network management monitoring light power, RF level and NO or OFF.
| Items | Units | HSOS21176G | HSOS21176GN | HSOS21176GNW | |
| Optical Characteristics | Working Wavelength | nm | PON：TX1310，RX1490;CATV：1290～1565 | ||
| Light transmitting power/light receiving sensitivity | dBm | 1-4(xPON)/≥-27 | |||
| Optical connector form/optical reflection loss | --/dB | SC/APC/≥45 | |||
| CATV optical power range | dBm | -18～-2 | |||
| RF Characteristics | RF broadband/irregularity | MHz/dB | 45～1000/≤±1 | ||
| Output level SMD/ light control AGC | dBuv | 76±2（-15～-5dBm) | |||
| RF interface /RF reflection loss | --/dB | F Type british system/≥14（characteristic impedance75Ω） | |||
| CTB/CSO/HUM | dB | ≥62/≥62/≥45（-9dBm） | |||
| MER（closed equilibrium） | dB | ≥25（64QAM）≥31（256QAM)(-12dBm，94CHSD) | |||
| MER（open equilibrium） | dB | ≥32（64QAM）≥34（256QAM)(-12dBm，94CHSD) | |||
| Error rate（BER） | / | ≤1×10-4（(measure at least 100bits） | |||
| WIFI | / | 2*2 2.4GHz 300Mbps(Internal or external double antenna, please specify when ordering） | |||
| Others | |||||
| internet access | / | 1GE（10/100/1000Mbps）+3FE（10/100Mbps），RJ45 port | |||
| Equipment type/specification size | --/mm | HGU/181*118*33 | |||
| Network management content | / | / | CATV receives light power, RF level, and switching state | ||
| Power supply/power consumption | V/A | External AV90～250V→DC12V/1A | |||
| Operating temperature/storage temperature | ℃ | -5～40/-20～75（Relative humidity 5-85%） | |||
| Product Name | Model | Functional Description |
| G/EPON ONU | HSOS21176G | xPON ONU, PON port access, 1GE+3FE Network interface，CATV1290～1565nm -5～-15dBm inport/RFMD76dBuv Constant output，xPON1310/1490nm1～4dBmTX，-28dBmRX; external 90~255V-12V 1A Power Adapter |
| HSOS21176GW | xPON ONU, PON port access, 1GE+3FE Network interface，2*2 2.4G WIFI（Built-in antenna 300m，CATV1290～1565nm -5～-15dBm inport/RFMD76dBuv Constant output，xPON1310/1490nm1～4dBmTX，-28dBmRX; external 90~255V-12V 1A Power Adapter | |
| xPON ONU, PON port access, 1GE+3FE Network interface，2*2 2.4G WIFI（External antenna antenna 300m，CATV1290～1565nm -5～-15dBm inport/RFMD76dBuv Constant output，xPON1310/1490nm1～4dBmTX，-28dBmRX; external 90~255V-12V 1A Power Adapter | ||
| HSOS21176GNW | xPON ONU, PON port access, 1GE+3FE Network interface，2*2 2.4G WIFI（Built-in antenna 300m，CATV1290～1565nm -5～-15dBm inport/RFMD76dBuv Constant output，Network management monitors optical receiving power, RF output level and RF on and off. xPON1310/1490nm1～4dBmTX，-28dBmRX; external 90~255V-12V 1A Power Adapter | |
| xPON ONU, PON port access, 1GE+3FE Network interface，2*2 2.4G WIFI（External antenna antenna 300m，CATV1550nm -5～-15dBm inport/RFMD76dBuv Constant output，Network management monitors optical receiving power, RF output level and RF on and off. xPON1310/1490nm1～4dBmTX，-28dBmRX; external 90~255V-12V 1A Power Adapter |
