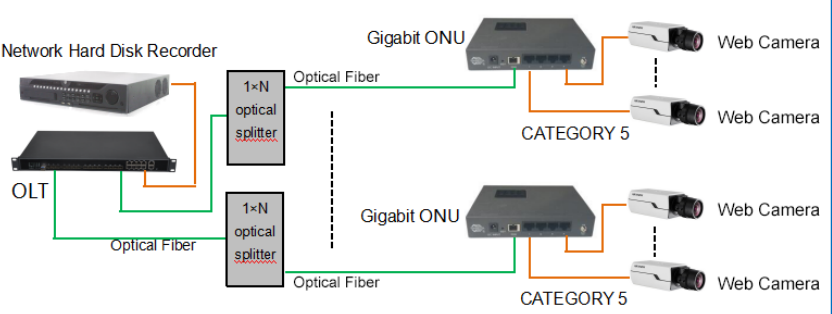

HSO1/2004-E is a 4-port Gigabit industrial-grade intelligent ONU terminal product for smart city and safe city projects. It can work normally at -20~70°C. The product complies with the IEEE 802.3ah international standard, the People's Republic of China communication industry standard(YD/T1475-2006), and China's good interoperability and operability, enabling interconnection with the industry's mainstream OLT equipment.
■ Superior Access Performance: Supports uplink and downlink symmetric 1Gbps PON transmission rate, which can achieve split ratio of up to 1:64, network coverage radius up to 20KM; truly reflects the high bandwidth, high user access and long PON communication, superior access capability for distance;
■ Secure Service Bearer Capability: Supports technologies such as VLAN, spanning tree, port isolation, ACL, QoS, security filtering, storm control, etc., so that the ONU product has a secure service carrying capacity;
■ Refined Service Control Capabilities: support DBA and Rate-Limit functions, advanced dynamic bandwidth allocation mechanism and accurate bandwidth limitation, enabling all users to share 1Gbps bandwidth resources more reasonably; support QOS functions and achieve reliable quality of service to ensure service priority and quality of service for different services in the network;
■ Rich OAM Function: Supports standard OAM and extended OAM defined by China Telecom CTC2.1/3.0, including configuration, alarm, performance monitoring, fault isolation and security management;
■ Perfect Interconnection and Interoperability: product complies with the IEEE802.3ah international standard and the People's Republic of China communication industry standard(YD/T 1475-2006), which meets the latest requirements of China Telecom CTC2.1/3.0, and can easily implement mainstream manufacturers. The interconnection and intercommunication of standard OLT devices and hybrid networking minimize network construction costs;
■ Wide Operating Temperature: Supports normal operation in -20~+70 degrees environment.
Item | Unit | HSO1004-E | HSO2004-E |
User Interfaces | Pcs | 4-RJ45, 10/100/1000Mbps adaptive | |
Structure Size | mm | 148×115×28, iron shell | |
PON Port | Pcs | 1-PON, Uplink and downlink symmetrical 1Gbps transmission rate Network coverage radius: 20km optical interface type: SC/UPC high sensitivity optical receiver: -27dBm or less illuminating power: 0-4dBm | 1-PON, Uplink and downlink symmetrical 1Gbps transmission rate Network coverage radius: 20km optical interface type: SC/UPC high sensitivity optical receiver: -28dBm or less illuminating power: 2-4dBm |
Working/Storage Temperature | ℃ | -20~70/-40~85 | |
Working/Storage Humidity | % | 5~90(No Condensation) | |
Power Supply/Power Consumption | V/W | Power Adapter AC90~255V→DC12(1A)/≤8 | |
Software Features | / | Supports Layer 2 switching capability; Layer 2 isolation of the user-side Ethernet interface is enabled by default; User-side Ethernet interface supports Fast Spanning Tree Protocol (RSTP) required by IEEE 802.1D; ACL function is supported, filtering specific data frames by ACL calls; The user-side Ethernet interface supports the IEEE 802.3x flow control protocol in full-duplex mode. Its related functions should be configurable. It supports IEEE 802.1Q protocol, supports VLAN division for user physical ports, supports VLAN tagging/de-marking, and VLAN transparent transmission. , VLAN Translation, VLAN priority marking, VLAN filtering and other functions; Support DBA dynamic bandwidth allocation function; Support user-side Ethernet interface bandwidth rate limiting function rate-limit; Support port mirroring function; Support QOS function, can achieve SP and WRR priority scheduling; Supports the dynamic controllable multicast function defined by the igmp-snooping and CTC functions of the Layer 2 multicast function; Support port loop detection; support power-down alarm function dying-gasp | |
Product Name | Model | Functional Description |
Gigabit Industrial EPON ONU | HSO1004-E | Iron Structure, EPON 4GE, support range at -20~+70 degree environment working normally; External 90~255V-12V 1A Power Adapter |
Gigabit Industrial GPON ONU | HSO2004-E | Iron Structure, GPON 4GE, support range at -20~+70 degree environment working normally; External 90~255V-12V 1A Power Adapter |
