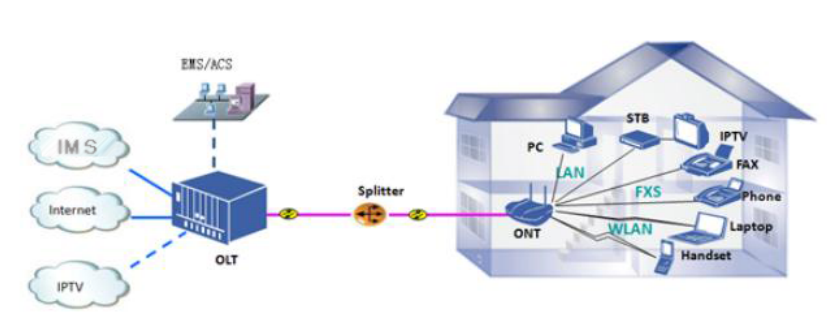

Huanshun HSO2004 is GPON system End-User Devices, through GPON Passive Optical Network to terminate the Service which transmitted from OLT(Optical Line Terminal). The Device works with OLT, and so ONU can provide various Broadband Services to the Connected Users. It meets the <YD/T 1475-2006 Access Network Technology, Ethernet Based Passive Optical Network (EPON)> and <China-Telecom GPON Equipment Technical Requirements> in the corresponding ONU Equipment Requirements, and obtains the China National Industry and Informatization Departments Telecommunications Equipment Access Licenses. This Device meets the FTTX & FTTH Applications of Broadcast Two-Way Network, supports the Mainstream Manufacturers OLT Hybrid Network, Minimizing Saving the Operator’s Cost of Building The Cable network. Ethernet ports are 4FE or 1GE+3FE optional.
█ Host Device Performance passed China National Industry and Informatization Departments Inspection & obtains Telecommunications Equipment Access Licenses;
█ Whole Device’s Performance passed EMC and Safety Detection and obtain National Mandatory Product of China(2015011608758829);
█ ONU support GPON OLT, Compatibility with Mainstream OLT Firms;
█ ONU has 4FE or 1Ge+3FE Network Ports as choice.
| Item | Unit | HSO2004 | HSO2004G | |
| Optical Characteristics | Working Wavelength | nm | TX1310, RX1490 | |
| Optical Transmit Power | dBm | 0~+6 | ||
| Optical Receiving Sensitivity | dBm | ≤ -28 | ||
| Optical Adapter | / | SC/UPC | ||
| Ports | User Ethernet Ports | pcs | 4(10/100Mbps) | 1(1000Mbps)+3(10/100/1000Mbps) |
| Others | Power Supply/Consumption | V/W | External Power Adapter AV90~255V→DC12(1A or 0.5A)/5 | |
| Working/Storage Temperature | ℃ | -25~55/-40~75(Humidity8～80%) | ||
| Size | mm | 130×60×22 | ||
Product Name | Model | Functional Description |
GPON ONU | HSO2004 | GPON 4FE ONU, PON port access, and with fiber storage setting; external 90~255V-12V 1A Power Adapter |
