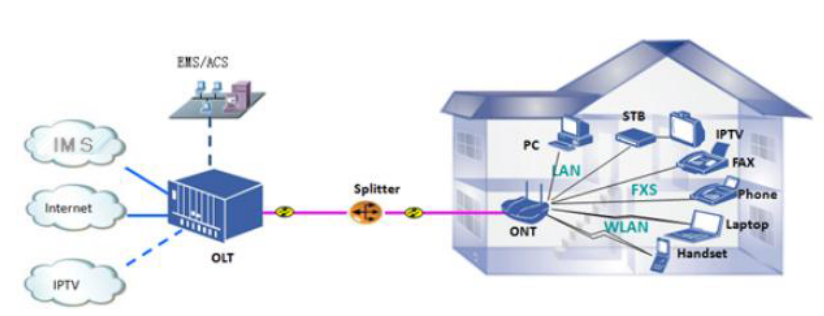

Huanshun HSO1004 is EPON system End-User Devices, through EPON Passive Optical Network to terminate the Service which transmitted from OLT(Optical Line Terminal). The Device works with OLT, and so ONU can provide various Broadband Services to the Connected Users. It meets the “YD/T 1475-2006 Access Network Technology, Ethernet Based Passive Optical Network (EPON)” and “China-Telecom EPON Equipment Technical Requirements” in the corresponding ONU Equipment Requirements, and obtains the China National Industry and Informatization Departments Telecommunications Equipment Access Licenses. This Device meets the FTTX & FTTH Applications of Broadcast Two-Way Network, supports the Mainstream Manufacturers OLT Hybrid Network, Minimizing Saving the Operator’s Cost of Building The Cable network.
█ Host Device Performance passed China National Industry and Informatization Departments Inspection & obtains Telecommunications Equipment Access Licenses;
█ Whole Device’s Performance passed EMC and Safety Detection and obtain National Mandatory Product of China(2015011608758829);
█ ONU support EPON, 10G EPON, Compatibility with Mainstream OLT Firms;
█ ONU has 4 FE Network Ports, fiber access in the device bottom and has fiber storage function, easy to use.
| Item | Unit | Performance Index | |
| Optical Characteristics | Working Wavelength | nm | TX1310，RX1490 |
| Optical Transmit Power | dBm | -1～+4 | |
| Optical Receiving Sensitivity | dBm | ≤ -27 | |
| Optical Adapter | / | SC/UPC | |
| Ports | User Ethernet Ports | pcs | 4(10/100Mbps |
| Others | Power Supply/Consumption | V/W | External Power Adapter AV110～255V→DC12(1A or 0.5A)/5 |
| Working/Storage Temperature | ℃ | -25～55/ -40～75(Humidity8～80%) | |
| Size | mm | 130×60×22 | |
| Operative Standards | / | National Information Department EPON Interworking Agreement |
Product Name | Model | Functional Description |
EPON ONU | HSO1004 | EPON 4FE ONU, PON port access, and with fiber storage setting; external 90~255V-12V 1A Power Adapter |
