| Type: | Cable television equipment |
| Function: | Optical reception |
| Certification: | ISO, RoHS |
| Conditions: | latest |
| Materials: | PC+ABS |
| Color: | Off-white + black |
| Model number: | HSGS10076/DN |
| Transportation package: | Pearl cotton + carton |
| Origin: | Ningbo, China |
| Trademark: | huanshun |
| Specifications: | 82(L)x82(W)x25(H)mm |
| Customs Code: | 8517622990 |
Huanshun HSGS10076/D/WN series Optical Receiver is specially designed for the FTTH application of the CATV network. Compact Structure, Good Appearance & Convenient Application. Even under the bandwidth up to 1000Mhz, it can also provide a Stable Output Level and Excellent Performance Indicators, which has the wide range of optical power working range.
This series of Optical Receiver use Ultra Low Optical Power Receiving Technology, all Gallium Arsenide Amplify, Optical Control AGC function, the Output Level of RF 82dBuv is stable when the optical receiving power is -12 to -2dBm. SNMP network management software can monitor and control the online status, input optical power, output RF monitoring, product temperature and other parameters of the device.
█ Ultra Low -18dBm Optical Power Receiving MER>28dB, 1000MHz Working Wavelength;
█ Stable and Reliable AGC Control Function, -12～-2dBm/RF82dBuv Constant Output;
█ Perfect Surge Suppression Circuit, Improving Lightning Protection & Surge Shock Prevention Ability;
█ Power Supply, Optical Power Working Condition LED panel display;
█ Low Power designed, Device Total Power Consumption less than 2.0W;
█ Optional SNMP Network Management Function, To achieve Remote Network Management and Local Monitoring;
█ Main Device’s Performance pass National Broadcast Inspection&Testing, and obtain the National CATV Admission Certificates;
| Item | Unit | HSGS10076N | HSGS10076DN | HSGS10076WN | |
| Optical Characteristics | optical receiving wavelength range | nm | 1290～1600 | 1540～1560 | 1540～1560 |
| PON port wavelength | nm | / | 1310/1490 | ||
| mutual isolation | dB | / | ≥22(1490/1550) | ||
| response rate | A/W | ≥0.85/≥0.9 | |||
| optical receiving power range | dBm | -2～-18(suggested-9～-12) | |||
| optical reflection loss | dB | ≥50 | |||
| fiber optic adapter/connector | / | SC/APC | SC/APC | IN:SC/APC,PON:SC/APC或UPC | |
| RF Characteristics | bandwidth/unevenness | MHz/dB | 47～1000/≤±1 | ||
| output level | dBuv | 82±1(RFMD， -12～-2dBm) | |||
| reflection loss | dB | ≥14(characteristic impedance75Ω) | |||
| MER(closed equilibrium) | dB | ≥25(64QAM)≥31(256QAM) -12dBm receive, optical link 94 digital channels | |||
| MER(open equilibrium) | dB | ≥32(64QAM)≥34(256QAM)-12dBm receive, optical link 94 digital channels | |||
| BER | / | ≤1×10-4(measure at least 100bits) | |||
| CNR/CTB/CSO | dB | ≥44≥58≥58（-9dBm/82dBuv时） | |||
| Other Index | network port | / | Ntype RJ45 1port(support SNMP&WEB) | ||
| Power supply/consumption | V/W | external AC90～255V→DC5/2 | |||
| working/storage temperature | ℃ | -30～55/-40～75 | |||
| working/humidity | % | 5～80(no condensation) | |||
| structure size | mm | 82×82×25 | |||
The network tube type optical reception system is composed of front-end PC server (equipped with SHS charge application software and charge management submodule), firewall, HSGS10076WN network tube WDM optical receiver or HSGS10076N network tube type optical receiver. The network tube WDM optical receiver adopts WDM technology to separate the CATV and POM optical signals,including ONU, built-in 1540-1565nmCATV carrier signal, and output RF analog or digital TV signal. RF signal is controlled by the front-end network management, which adopts HTTP protocol and can be exchanged on any Internet protocol, such as TCP / IP protocol. It is the most widely used application of the Internet of Things and meter reading system in the IT industry at present.
The application of network management optical receiver can be connected with the corresponding HTTP FTTH network management software to realize remote network equipment management. Including input optical power, RF output level,output RF switch ON or OFF. The system finds the device, configures the IP address of the device, reads the parameters of the device, and switches the RF output simultaneously.

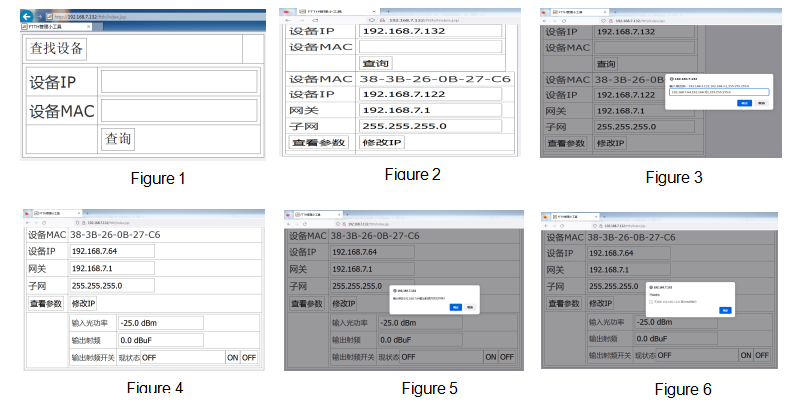

Step 1: Find the device, first install FTTH network management tool on the PC, then connect the device with the network cable, log in http://192.168.7.132/ftth/index.jsp,PC display tool search interface, see attached Figure 1
Step 2: Enter the device IP address: 192.168.7.132, click "Query" PC to display the corresponding device interface, see attached Figure 2;
Step 3: Modify the IP address, modify it according to the IP address planned by the operator, save it by "determined" in the page, and identify it in the equipment, see attached Figure 3 for details;To verify the network management parameters and switch status, return to the second step, click "View parameters", and the PC displays the corresponding parameters and switch status, see attached Figure 4. Press "ON" or "OFF" to display the RF switch instant status, see attached Figures 5 and 6.
The HTTP FTTH network management software shall be used for multiple equipment management, and the application instructions are detailed in the software instructions
Product Name | Model | Functional Description |
Network tube FTTH optical receiver | HSGS10076N | 1290～1565nm reception，-2～-12dBm/RFMD 82dBuv Constant Output，(RJ45 standard network management transponder）RJ45 Standard Network Management transponder，External 90~255V 5V 0.5A Power Adapter |
Network tube filter FTTH optical receive | HSGS10076DN | 1540～1565nm reception，-2～-12dBm/RFMD 82dBuv Constant Output，（RJ45 standard network management transponder）RJ45 Standard Network Management transponder，External 90~255V 5V 0.5A Power Adapter |
Network Management WDM FTTH Optical receiver | HSGS10076WN | CATV：1540～1565nm+PON：1310 ～1490nm reception，-2～-12dBm/RFMD 82dBuv Constant Output；PON interface：1310 ～1490nm ， insertion loss ：≤0.8dB.（RJ45 standard network management transponder）RJ45 Standard Network Management transponder，External 90~255V 5V 0.5A Power Adapter |
